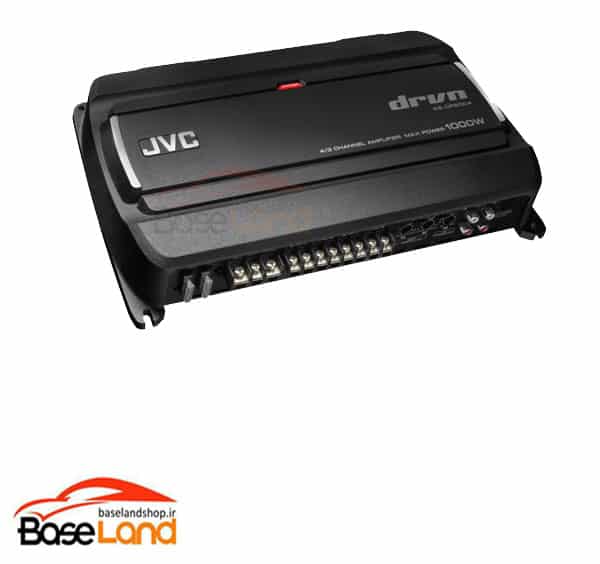

آمپلی فایر جی وی سی-مدل DR5004
گارانتی 1 ساله البرز
Operation Channel 4, 3, or 2
Maximum Power Output 1000W
RMS Power Output 70W x 4 into 4 ohms at 20 – 20,000Hz, 100W x 4 into 2 ohms at 20 – 20,000Hz , 200W x 2 into 4 ohms at 20 – 20.000Hz Bridged
Class Class-AB
Frequency Response (+0, -3dB) 5 – 50,000Hz
Total Hamonic Distortion < 0.04% at 4 ohms, 1,000Hz
Signal-to-Noise Ratio (reference: 1W into 4 ohms), CEA-2006 Compliant 80dBA at 4 ohms, 1W
Load Impedance
Load Impedance Allowance 2 – 4 ohms
Allowance (Bridged) 4 – 8 ohms
Line Input Level/Impedance 2V/20 kohms
MOS-FET Power Supply Yes
MOS-FET Output Stage Yes
HPF 50 – 200Hz, -12dB/oct (Variable)
LPF 50 – 200Hz, -12dB/oct (Variable)
Variable Input RCA Level Control 0.25 – 5V
Variable Speaker Input Control 1- 20V
Bass Boost Control at 45Hz Y (45Hz, 0 – 18dB)
RCA Terminals (In/Out) 2 pairs (Nickel-plated In), 1 pair (Nickel-plated Out)
Power Supply Terminals 1 pair (Nickel-plated)
Speaker Out Terminals 2 pair (Nickel-plated)
Protection Circuitry (Thermal / Short Circuit / Overload / DC Offset) Yes
Anti-Pop Circuit Yes
Side Covers Yes
Power On Indicator/Protector Indicator Power On (GREEN)/Protector (RED)
Dimensions (W x H x D) 310 x 60 x 300mm (12-1/4″ x 2-3/8″ x 11-13/16″)
Heatsink Dimensions (W x H x D) 250 x 58.5 x 280mm (9-7/8″ x 2-5/16″ x 11-1/16″)
